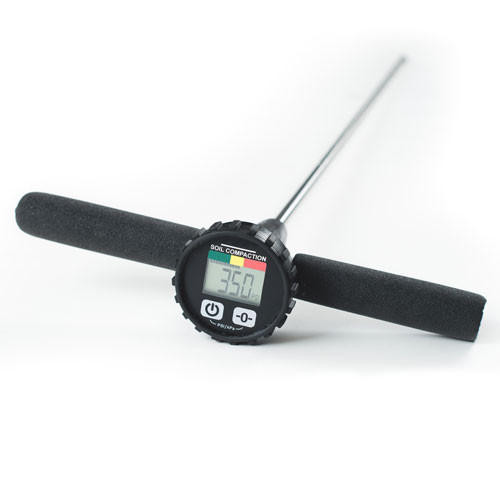

Digital Soil Compaction Tester / Digital Dial Penetrometer
The NEW Digital Soil Compaction Tester is a digital version of the Dial Penetrometer for testing hard pans in the soil. It uses an electronic force sensor that eliminates changing tip size for different soil types. The LCD display reads in PSI or kPa shows compaction severity with green/yellow/red color code. It is rugged and meets ASABE S313.3 Soil Compaction Standard.
By pushing the Digital Soil Compaction Tester into the soil with steady downward pressure and watching the digital read out, you can visually see any hard pans in the compacted soil profile up to 24 inches deep (60 cm). It also reads the maximum or “Peak” PSI reading after each reading.
Soil compaction can occur in any type of soil. Years of traffic, tillage, Aerification and settling can cause soil particles to group together and fill in air spaces in the soil creating a “plow pan” or “hard pan” below the root zone. When this happens, a hard layer is formed making it difficult for moisture and roots to penetrate the soil. Some soil types are more susceptible to compaction than others; but once a compaction layer is formed, and moisture and traffic continues, the compaction layer will continue to get denser and thicker. The depth markings on the tester, indicating precise measurements at intervals of 6", 9", and 12", help users assess how deeply hard layers exist in the soil.
Digital Soil Compaction Tester / Digital Dial Penetrometer is a simple tool that uses a stainless steel probe and downward pressure to determine soil compaction at different depths in the soil profile. With this easy to use tool you can test down to 24 inches deep (60 cm).
Why Test Soil Compaction?
Turfgrass Areas
-
Increase the effectiveness of your irrigation system
-
Applications of fertilizers, pesticides and herbicides will penetrate the soil better
-
Increase soil water retention and infiltration
-
Insure Aerification techniques are reaching desired depths, promoting healthy root growth
-
Using soil compaction testers to push tools into the ground helps assess soil conditions
-
Maintain consistency from on green, fairway, tee or athletic field to another
Farming
-
In Farming, increase yield by increasing root and plant development
-
in Farming, reduce time and fuel cost by reducing power needed to till a field
-
Increase the effectiveness of fertilizers, pesticides and herbicides
-
Increase soil water retention and infiltration
The Soil Compaction Tester is a practical tool that aids in identifying soil density layers, making it user-friendly and effective for optimizing soil health. It helps detect problem areas that may hinder root growth and reduce crop yields.
To read the Digital Soil Compaction Tester / Digital Dial Penetrometer simply look at progress bar on digital read out for color comparison and digital display for PSI or kPa numeric value
-
Green (0 - 200 psi) - Good Growing Conditions
-
Yellow (200 - 300 psi) - Fair Growing Conditions
-
Red (300 psi and above) - Poor Growing Conditions
Features
-
Ultra-hard tool steel cone for years of service
-
Electronic Force Sensor eliminates changing cone size to improve resolution
-
Shaft marked every 4in (10cm) for easy depth reference
-
Durable stainless steel rod marked with depth measurements for accurate soil penetration testing
-
Reads in PSI or kPa shows compaction severity with green / yellow / red color code
-
Rugged design & rubber protector for repeated field use
-
Meets ASABE S313.3 Soil Compaction Standard
-
Replaceable tip
Specifications
-
Resolution: +/-1 PSI (5 kPa)
-
Accuracy: +/-15 PSI (100 kPa)
-
Max Penetration Depth: 30 in (76 cm)
-
Range: 0 to 825 PSI (0 to 5690 kPa)
-
Color Coded Display: 0-200 PSI(1400 kPa) Green
-
200-300 PSI Yellow
-
300+PSI (2070 kPa) Red
-
Overall Size: 35.25 x11x2.75 in (90x28x8 cm)
-
Weight: 2 Lbs (1 kg)
-
Batteries: 2 x AA Size (included)
-
Cone: 0.505 in. Ultra-Hard Tool Steel (included)
-
Made in USA
