Digital Multimeter with High-Speed Bar Graph, Continuity Buzzer

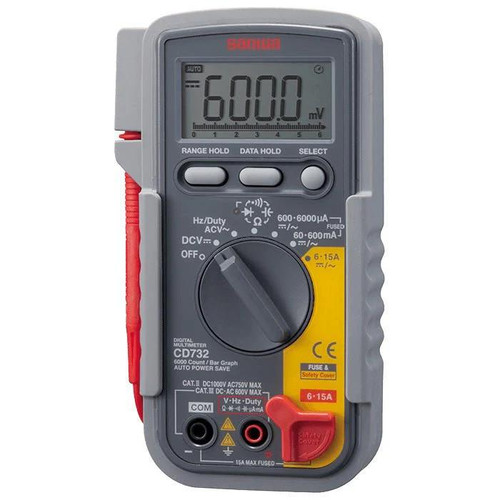

Sanwa CD732 Digital Multimeter - High Performance and Safety Combined

The Sanwa CD732 is a high-precision, 6000-count digital multimeter renowned for its reliability and performance in both professional and hobbyist applications. Designed with cutting-edge features and built from durable, fire-retardant materials, this multimeter ensures safety and accuracy for all types of electrical measurements. Whether you’re working with low-capacity electrical circuits, home appliances, or conducting detailed circuit analyses, the CD732 is a versatile and essential tool for your needs.

Key Features:

• 6000-Count Display with High Accuracy: Boasts 0.5% accuracy for precise readings in various applications.
• Wide Measurement Range: Measures up to 1000 VDC, 750 VAC, and capacitance from 0.01nF to 3999μF. Ideal for testing low-voltage circuits, batteries, and more.
• High-Speed Bar Graph: Provides real-time visual representation of measurements, excluding frequency, duty cycle, capacitance, and diode tests.
• Continuity Buzzer with LED Indicator: Quickly identifies continuity with a sound and visual LED confirmation for added convenience.
• Range Hold and Data Hold: Locks readings on the display for easy analysis during testing.
• Auto and Manual Range Selection: Offers flexibility to choose the best setting for your measurements.
• Auto Power Save Mode: Extends battery life by automatically turning off the device after 16 minutes of inactivity. This feature can also be disabled if needed.
• Built-In Safety Features:
  • Fire-retardant materials used in the case and circuit boards provide extra protection.
  • The 6-15A measurement terminal is equipped with a safety cover to prevent accidental insertion.
• Compliance with International Safety Standards: Designed to meet EN61010-1 standards, categorized as CAT III DC/AC 600V and CAT II DC 1000V / AC 750V.

Performance and Specifications:

• Voltage Measurement:
  • DCV: 600mV to 1000V (±0.5% accuracy)
  • ACV: 6V to 750V (±1.2% accuracy)
• Current Measurement:
  • DCA: 600µA to 15A (±1.5% accuracy)
  • ACA: 600µA to 15A (±1.8% accuracy)
• Resistance Range: 600Ω to 60MΩ (±1.2% accuracy)
• Capacitance Range: 40nF to 3999µF (±5.0% accuracy)
• Frequency Measurement: 9.999Hz to 99.99kHz (±0.5% accuracy)
• Duty Cycle Measurement: 20%-80% with ±0.5% accuracy.
• Continuity Test: Buzzer and LED activate between 10-60Ω. Open voltage: ~0.63V.
• Diode Test: Open voltage: ~2.7V.

Advanced Design for Durability and Usability:

• Compact and Lightweight: The CD732 measures just H167 x W90 x D48mm and weighs 320g (including the protective holster), making it portable and easy to handle.
• Display: Features a crisp numeric display (6000-count) and a 61-segment bar graph for fast, detailed readings. Sampling rates are 3 times/sec for numeric data and 30 times/sec for the bar graph.
• Fuse Protection: Includes two high-capacity fuses for additional safety:
  • 0.4A/1000V (30kA)
  • 16A/1000V (30kA)
• Power Supply: Operates on 2 R6 (1.5V) batteries, providing approximately 400 hours of operation in DCV mode using manganese batteries.

Applications:

The Sanwa CD732 is perfect for:

• Testing home appliances and lamp circuits.
• Measuring small communications equipment and batteries.
• Circuit analysis for low-voltage systems.
• Professional electrical work requiring high accuracy and compliance with safety standards.

What’s in the Box?

• Sanwa CD732 Digital Multimeter
• Durable rubber holster for added protection
• One set of high-quality test leads
• Instruction manual

Whether you’re an experienced electrician or a DIY enthusiast, the Sanwa CD732 is your go-to tool for accurate, safe, and efficient electrical measurements. Built to handle the demands of modern electrical testing, this reliable multimeter ensures you can tackle any task with confidence.
