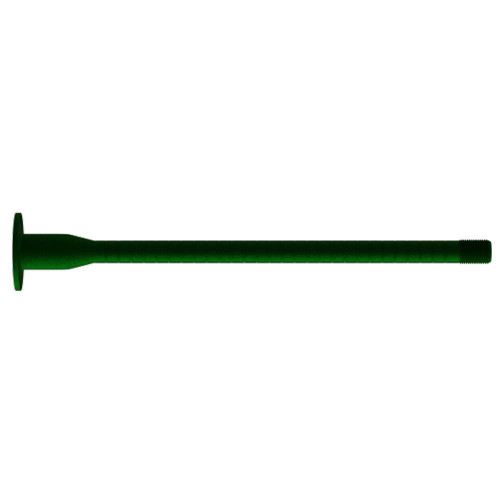

D101A - Straight Dowel Bar Splicer
Accessories
Dayton
The Dayton Superior Dowel Bar Splicer is a one-piece unit, integrally forged from ASTM A615 grade 60 deformed rebar material. The splicers are available in #4 through #11 rebar sizes to be used in conjunction with the corresponding size dowel-in to accomplish a mechanical splice designed to achieve 160% of specified yield (full mechanical ultimate). The splicer can be furnished straight (D101A) cut to length, 90° and 180° hooked (D102A and D103A) and double-ended (D104A) in plain or epoxy coated finish. The splicer can also be special-ordered with a reduced diameter washer flange or with the washer flange clipped (in more than one direction, if required) to provide adequate concrete cover, or to avoid interference. The D104A Double-Ended Dowel Bar Splicer is used to establish a direct load path through a concrete section, thus avoiding multiple hooked rebar and eliminating rebar congestion. The double-ended unit can be configured in a “U” shape for special applications.
As a one-piece unit, the D101A eliminates the complexities of traditional splicing methods, delivering a reliable and robust connection. Available in a range of sizes from #4 to #11, it is engineered to perfectly fit corresponding dowel-in configurations, ensuring precise alignment and enhanced performance. This versatility allows for applications across various project requirements.
The splicer comes standard as a straight model, but customization options are available, including cut-to-length configurations and angled forms such as 90° and 180° hooked, and double-ended varieties. Each option assures optimal flexibility, making it easier to adapt to any construction layout. For projects necessitating additional ingenuity, the D104A double-ended unit facilitates a direct load path through concrete sections, thereby minimizing rebar congestion that can complicate installations.
The coating options include both plain and epoxy finishes, protecting the splicer against corrosion while maintaining structural integrity over time. The D101A can also be ordered with reduced diameter washer flanges or clipped flanges for specific spacing needs and concrete cover requirements.
Ideal for engineers and contractors looking for reliability and innovation in rebar connections, the Dayton D101A Dowel Bar Splicer exemplifies quality and adaptability, positioning itself as an essential component in modern concrete construction. Enhance your project’s efficiency and performance with Dayton’s trusted engineering solutions.
