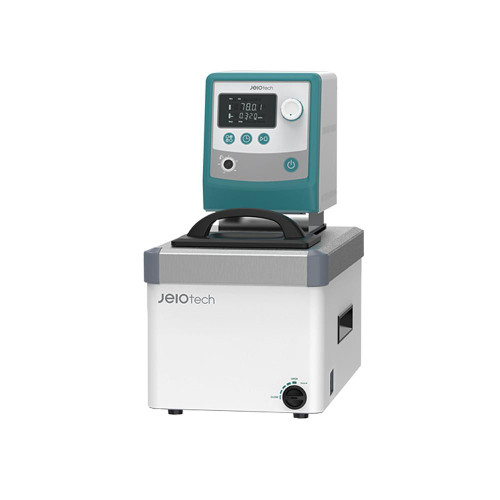

CW3-10 Heating Bath Circulator (10L), 230V

CW3-10 Heating Bath Circulator (10L), 230V

The CW3-10 Heating Bath Circulator is a cutting-edge solution for precise temperature control and reliable performance, designed to meet the rigorous demands of modern laboratories, research facilities, and industrial processes. With its advanced features, unmatched versatility, and user-friendly design, the CW3-10 is the ultimate tool for consistent and reproducible results in a wide range of applications.

Unmatched Temperature Control and Performance

• Wide Temperature Range: Operates from ambient +5°C to 150°C (ambient +9°F to 302°F), making it suitable for everything from basic heating applications to advanced materials science and biotech research.
• Microprocessor PID Control: Ensures precise, stable, and rapid temperature regulation with minimal overshoot, providing the accuracy needed for critical experiments.
• Three-Point Calibration & Auto-Tuning: Features enhanced calibration functions and automatic tuning for maximum accuracy and reproducibility, ensuring reliable results every time.

Powerful Circulation and Flow

• Variable-Speed Pump: A five-step adjustable pump delivers consistent circulation for both internal and external applications, ensuring uniform temperature distribution in the bath and effective heat exchange with external devices.
• High-Performance Pumping: Provides a maximum pressure of 5.9 PSI (406.8 millibar) and an impressive flow rate of 7.4 gallons per minute (28 liters per minute), ensuring reliable performance even in complex setups with multiple external devices connected.

Intuitive and User-Friendly Design

• Bright VFD Display: The easy-to-read VFD display shows key parameters at a glance, with a fine 0.1°C resolution for precise monitoring and control.
• Quick-Adjust Dial Knob: Allows for fast and effortless setting adjustments, saving time during operation.
• Dual Timer Functionality: Includes wait on/off timers programmable from 1 minute to 99 hours and 59 minutes for automated, unattended operation.
• Programmable Memory: Store up to three frequently used temperature settings for instant recall, reducing setup time and improving workflow efficiency.
• Durable Stainless Steel Bath: The 10-liter bath is constructed with corrosion-resistant 304 stainless steel and features a seamless, round-cornered design for easy cleaning. A front-access drain valve simplifies maintenance.
• Portable Design: Integrated side handles make it easy to transport and position the circulator within your workspace.

Advanced Connectivity for Modern Workflows

• RS-232 Interface: Standard connectivity enables external control and data logging for enhanced monitoring and reporting.
• USB Compatibility: Includes an RS-232 to USB serial converter for added convenience.
• Optional Remote Monitoring: The LC GreenBox accessory lets you monitor and control the circulator remotely via the LC Connected mobile app, ensuring seamless operation anytime, anywhere.

Comprehensive Safety Features

• Isolated Components: The agitator, heater, and sensor are separated by a baffle plate to prevent fluid turbulence, protect samples, and avoid accidental contact with hot components.
• Multi-Level Protection System: Includes alarms for low fluid level, dry-running, over-temperature, and over-current conditions to safeguard both the equipment and your samples.
• Keypad Lock Function: Prevents accidental or unauthorized adjustments to settings during critical experiments, ensuring the integrity of your results.

Specifications at a Glance

• Bath Volume: 10 L / 0.4 cu ft
• Temperature Range: Ambient +5°C to 150°C / Ambient +9°F to 302°F
• Temperature Stability: ±0.05°C / ±0.09°F
• Max Pump Pressure: 5.9 PSI (406.8 millibar)
• Max Pump Flow: 7.4 gpm (28 L/min)
• Bath Opening: 211 × 154 mm / 8.3 × 6.1 in
• Bath Depth: 180 mm / 7.1 in
• Overall Dimensions: 289 × 450 × 444 mm / 11.4 × 17.7 × 17.5 in
• Net Weight: 15 kg / 33 lbs
• Electrical Requirements: 230V, 60 Hz, 8.5 A

Applications Across Industries

The CW3-10 Heating Bath Circulator is versatile enough to meet the needs of various scientific and industrial fields:

• Laboratory Research: Ideal for chemical synthesis, biological sample incubation, enzyme assays, and more.
• Quality Control: Ensures precise temperature regulation for testing materials, components, and products.
• Analytical Instrumentation: Provides stable temperature control for viscometers, spectrophotometers, and refractometers.
• Materials Science: Supports polymer testing, material property analysis, and other advanced research.
• Industrial Applications: Perfect for small-scale pilot plants, process development, and temperature-sensitive production processes.

Additional Benefits

• Energy Efficiency: Engineered to balance high performance with low energy consumption, minimizing operational costs.
• Long-Term Durability: Built with premium materials and components to ensure reliability and longevity, even in demanding environments.
• Customizable Options: Upgradeable with accessories like the LC GreenBox for remote monitoring and advanced connectivity features.

Why Choose the CW3-10 Heating Bath Circulator?

The CW3-10 combines precision, power, and user convenience into one exceptional solution. Whether you're conducting cutting-edge research or managing quality control processes, this heating bath circulator guarantees accurate, repeatable results while enhancing operational efficiency.

Invest in the CW3-10 for a smarter, safer, and more reliable temperature control solution that meets the challenges of today’s complex scientific and industrial workflows.
