Humboldt HCM-0116, Cube Test Set, 6in, for HMC-4000/5000 Machines
Supports the following standards: AASHTO T22, AASHTO T106
Used for testing 6" (152 mm) concrete cubes and cylinders in compression.

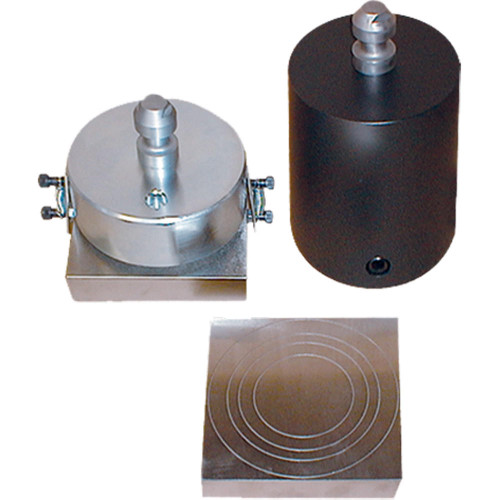

Cube test set consists of a 6.5" (165mm) square, spherically-seated upper platen assembly.
The platen bearing blocks are through-hardened to HRC 55 or greater, plane to .0005" (.012 mm) in any 6" (152 mm) area, has concentric circles for easier centering of cylinders and is hard nickel- plated for wear and corrosion resistance.
Kit Includes: spherical seated platen assembly and spacer. Note: A 6.5" (152 mm) square lower platen is supplied with MA-0113 cube set for use in HCM-2500 series machines.
A high-quality concrete compression testing machine stand improves the testing process by providing a sturdy frame that allows you to position your compression platens at a convenient height. Machine stands are one of the most essential concrete compression machine accessories. Our concrete compression testing machine stands are built with durable steel frames ideal for 250k/ 300k machines.
