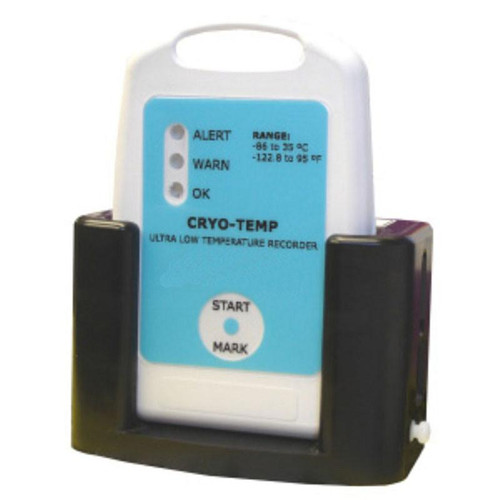

CRYO TEMP Ultra-Low Temperature Data Logger, As Low As -86C

Ultra Low Temperature Data Logger, records temperatures as low as –86°C. Stand-alone device does not require any additional probes.

FEATURES:

• Ultra Low Operating Temperature (-86°C)
• May Be Placed In Direct Contact With Dry Ice
• No External Probes Or Wiring
• Programmable Alarm & Warn Ranges w/Alarm Delay
• Led Status Indicators For Instant Alarm Notification
• High Accuracy
• Magnetic Start
• Optional Password Protection
• Splash Resistant (Ip64)
• CE Compliant

SPECIFICATIONS:

Temperature Sensor: NTC Thermistor

Temperature Range: -86°C to +35°C recommended, may be used up to +55°C

Temperature Resolution: 0.1°C

Calibrated Accuracy: ±1.0°C

Memory: 32,767 readings; software configurable memory wrap

Reading Rate: 5 seconds to 30 minutes, selectable in software

Start Modes: Software programmable immediate start, delay start up to 30 days in advance or manual start with magnetic switch

Temperature Alarm: Software programmable high and low alarm limits, high and low warn limits each setpoint may be individually enabled or disabled

Alarm Delay: Software programmable time delay for warn/alarm limits. Logger will not indicate out of range status until the temperature has been out of range for a for a set period of time.

Status Indicators:

Green- Blinks to indicate safe conditions during logging

Yellow- Blinks to indicate warn limits have been exceeded

Red- Blinks to indicate alarm criteria (limits/delay) have been exceeded

Password Protection:

An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.

Calibration: Digital calibration through software

Calibration Date: Automatically recorded within device

Battery Type: 3.6V lithium battery (LTC-7PN), factory replaceable only

Battery Life: 2 years typical @ 25°C, 1 min. reading intervals 1 year typical @ –80°C, 1 min. reading intervals

Data Format: Date and time stamped ºC, ºF, K, ºR

Time Accuracy: ±2 minutes/month max. at 20 to 30°C ±5 minutes/month max at –80°C

Computer Interface: USB docking station to PC (IFC300) 38,400 baud

Software: XP SP3/Vista/Windows 7

Operating Environment: -86°C to +35°C (may be used up to +55°C); 0 to 100% RH

Dimensions: 3.3” x 2.1” x 0.4” (83 mm x 54 mm x 11 mm)

Ingress Protection/IP: IP65 (splash resistant, not submersible)

Enclosure: ABS plastic, white, polycarbonate labeling

Weight: 1.4 oz (40 g)
