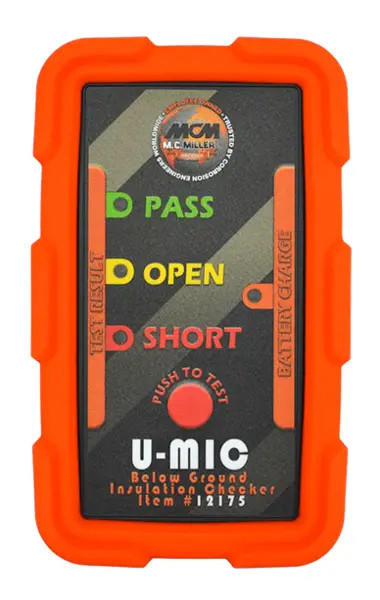

Below Ground Miller Insulation Checker (U-MIC)

All new M.C.Miller meters include a Calibration Certificate.

The U-MIC offers all the features & functionality of the former and very popular Model 702 Casing Insulation Tester but with an improved modern design in a rugged case with M. C. Miller's high quality components and manufacturing standards at an incredible price.

Features:

• Built to provide years of dependable service

• Light, compact, and durable with a long battery life

• Checks all types and sizes of buried insulators using remote test leads: flanges, dressers, couplings, unions, carrier pipe to casing, whether parallel or in a series

• Easily indicates continuity of connection between pipe and test lead

• Simple to operate - one push button and bright LED lights indicating results

• Cost Effective - saves time compared to other test procedures

Includes:

• U-MIC, Below Ground Miller Insulation Checker

• (2) Shrouded RT Angle Banana Plug Test Leads

• Micro USB to USB Charging Cable

• USB Wall Charging Adapter

Manuals:

•  Below Ground Miller Insulation Checker Manual (U-MIC) User Manual ver 1.0

Brochures:

•  Below Ground Miller Insulation Checker Manual (U-MIC) - Single Page Brochure

Specifications:

• Power Source: Rechargeable Li-Ion Battery

• Operating Temperature: (Li-Ion Battery Limited) of 32°F ~ 140°F (0°C ~ 60°C)

• Storage Temperature: (Li-Ion Battery Limited) of 32°F ~ 140°F (0°C ~ 60°C)

• Dimensions

• Width: 3.375 inches (8.57cm)

• Length: 5.625 inches (14.29cm)

• Height: 1.875 inches (4.76cm)

• Weight: 12.8 oz. (0.363 kg.)
