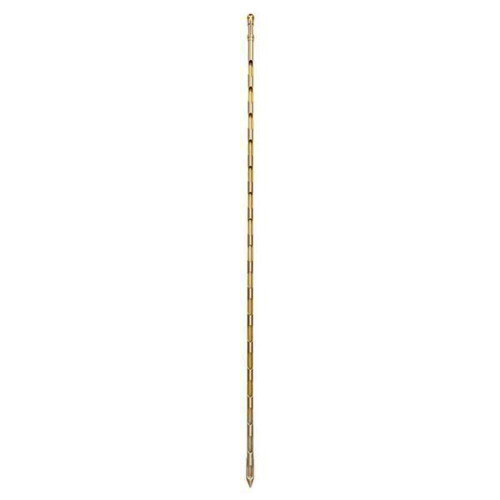

96in Brass Double-Tube Sampling Probe

96in Brass Double-Tube Sampling Probe

The 96in Brass Double-Tube Sampling Probe is a specialized tool engineered for collecting representative samples from bulk materials. It is ideal for use in agriculture, food production, and pharmaceuticals, particularly for sampling fertilizers, grains, powders, and other granular substances. Constructed from seamless, extruded brass, this durable probe allows for the collection of samples from various depths within a container or pile, ensuring an accurate composite sample.

The probe's double-tube design features an inner tube that rotates to open and close the sampling openings, allowing for precise sample collection. Its substantial length of 96 inches (2,438mm) enables deep penetration into large sacks, bins, or transportation vessels. The open-ended handle is designed for quick and easy emptying of the collected sample.

Key Features

• Robust Construction: Made from high-quality, seamless extruded brass with a durable, replaceable bronze tip for long-lasting performance and resistance to corrosion.
• Deep Sampling Capability: The 96-inch length allows for sampling from deep within large containers, ensuring a comprehensive and representative sample is collected.
• Multiple Openings: Features sixteen non-partitioned openings along the probe's length to gather material from different levels simultaneously.
• Controlled Sampling: The inner tube rotates 180° to open or close the sampling holes, giving the operator full control over the collection process and preventing sample loss during insertion and removal.
• Efficient Unloading: An open-ended handle allows the collected sample to be easily and completely discharged for analysis.

Included Items

• 96in Brass Double-Tube Sampling Probe with Bronze Point

Optional Accessories

• Sampling Probe T-Handle: This attachable T-handle provides additional leverage and an improved grip, making it easier to insert, rotate, and withdraw the probe, especially in compacted materials.

Specifications

• Length: 96in (2,438mm)
• Outer Diameter: 1.375in (34.9mm)
• Material: Seamless Extruded Brass with a Replaceable Bronze Point
• Probe Type: Double-Tube, Non-Partitioned
• Partitions: No
• Number of Openings: 16
• Opening Size (LxW): 3.375 x 0.875in (85.7 x 22.2mm)
• Handle Type: Open-ended for easy sample discharge
• Product Dimensions (LxDia.): 96 x 1.375in (2,438.4 x 34.93mm)
• Estimated Weight: 20.0lb (9.07kg)
