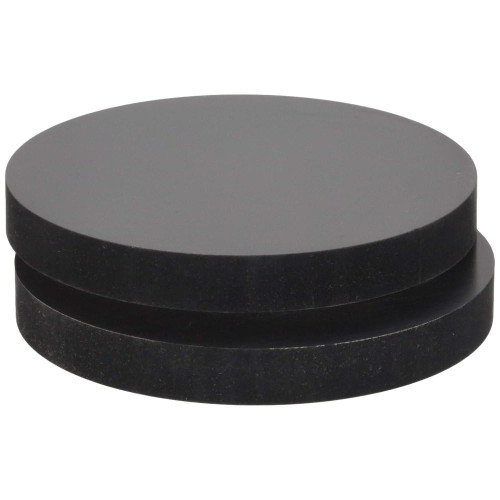

6in Unbonded Capping Neoprene Pad Cap, 50 Durometer (24/Ct)

Deslauriers 6in Unbonded Capping Neoprene Pad Cap, 50 Duro (24/Box)

The Neoprene Compression Pad flows into irregularities and distributes the test load uniformly without creating air pockets to assure consistent breaks.  Patented “stay in place” nubs, secure pads into cups.

Compression pads are available in several hardnesses.
50 duro for design strength 1500 to 6000 psi.
60 duro for design strength 2500 to 7000 psi.
70 duro for design strength 4000 to 12,000 psi.

*Qualifying tests must be performed for strength over 7,000 psi per ASTM.

Refer to ASTM C1231 for max uses, qualification test, etc. Our sales personnel are always available to assist.

6in (152.4mm) Neoprene Pads come in 50, 60, or 70 durometer. They are used when testing compressive strength of 6x12in concrete cylinders and meet ASTM C1231/1231M and AASHTO T 22 standards. The pads are 0.5in (12.7mm) thick and flow during compression to fill irregularities in cylinder ends and ensure uniform load distribution. The 6in Steel Retainer Set are sold separately and required to hold the pads at both ends of the cylinder. Two pads are required. Pads can be used up to 100 times.

Deslauriers 6in Unbonded Capping Neoprene Pad Caps Meets Test Methods:

• AASHTO T22
• ASTM C 1231

 Econ-O-Cap Unbonded Capping System



The Deslauriers 6in Unbonded Capping Neoprene Pad Cap is a reliable and efficient tool for testing the compressive strength of 6x12in concrete cylinders. Designed to meet ASTM C1231/1231M and AASHTO T 22 standards, these neoprene pads ensure accurate and consistent results.

These 6in Neoprene Pads are available in three different hardness options: 50, 60, and 70 durometer. The 50 duro pads are ideal for design strength ranging from 1500 to 6000 psi. The 60 duro pads are suitable for design strength ranging from 2500 to 7000 psi, while the 70 duro pads are recommended for design strength ranging from 4000 to 12,000 psi. However, it is important to perform qualifying tests for strength over 7,000 psi per ASTM standards.

The neoprene pads are 0.5in thick and flow during compression to fill any irregularities in the cylinder ends. This feature ensures uniform load distribution, resulting in consistent and accurate test breaks. The patented "stay in place" nubs securely hold the pads into the cups, preventing any movement or displacement during the testing process.

To use the Deslauriers 6in Unbonded Capping Neoprene Pad Cap, the 6in Steel Retainer Set is required. These retainers hold the pads at both ends of the cylinder, ensuring proper positioning and stability. Two neoprene pads are required for each cylinder. The pads can be used up to 100 times, providing excellent durability and value for money.

In addition to meeting the necessary test methods and standards, the Deslauriers 6in Unbonded Capping Neoprene Pad Cap also offers convenience and accessibility. Our sales personnel are always available to assist with any questions or concerns. Furthermore, our website provides a wide range of related products, including concrete capping options and the Econ-O-Cap Unbonded Capping System.

For further information and resources, we offer a selection of related blog posts that cover essential steps for capping concrete, the benefits of capping compound for concrete cylinder testing, and understanding unbonded caps for concrete cylinders to avoid low-strength breaks. These resources provide valuable insights and guidance for professionals in the industry.

Trust the Deslauriers 6in Unbonded Capping Neoprene Pad Cap to deliver accurate and consistent results in your concrete cylinder testing. Its reliability, durability, and ease of use make it an essential tool for any construction or testing project.
