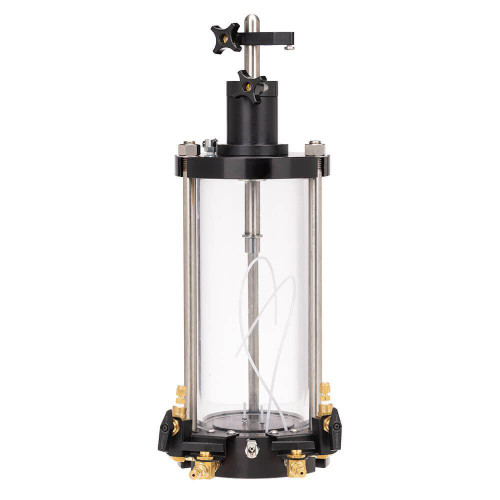

Triaxial Cell, 1.4 to 4in Diameter Specimens (Brass Valves)

Triaxial Cell, 1.4 to 4in Diameter Specimens (Brass Valves)

Triaxial Test Cells for 1.4in to 4in Specimens

Our Triaxial Test Cells are designed for testing soil specimens with a maximum diameter of 1.4in to 4in (35.6 to 101.6mm). Built with durable brass or stainless steel valves and fittings, these test cells provide excellent performance when paired with Master or Auxiliary Control Panels, as well as other triaxial testing systems.

The cells feature a robust, machined aluminum base to handle heavy loads, while the chamber is made from heavy-wall clear acrylic for durability and visibility. A precision-ground stainless steel load piston with internally lubricated U-cup seals and nylon sleeve bearings ensures minimal friction. Equipped with zero-volume change ball valves, the cells support a maximum operating pressure of 150psi (10.3 bar).

Key Features:

• Brass or stainless steel valves and fittings for durability
• Heavy-wall clear acrylic chambers for strength and visibility
• Solid aluminum base designed to handle heavy loads

Included Components:

• Triaxial Test Cell for specimens 1.4 to 4in in diameter
• Dial indicator/LVDT holder

Specifications:

• Specimen Size: 1.4–4in (35.6–101.6mm)
• Maximum Pressure: 100–150psi (6.9–10.3 bar)
• Chamber Dimensions: 5.0 x 12.125in (127 x 308mm) (Dia. x H)
• Product Dimensions: 8 x 10 x 25in (203 x 254 x 635mm) (W x D x H)

Additional Accessories: A size-specific Test Cell Kit is required for testing soil specimens. Kits include an anodized aluminum cap and pedestal, two porous stones, two latex membranes, and four O-rings. Kits are sold separately on the Triaxial Cell Accessories page. A Digital Pore Pressure Gauge with Transducer is also available.

Conforms to Standards:

• AASHTO T 296
• ASTM D2850
• ASTM D4767
