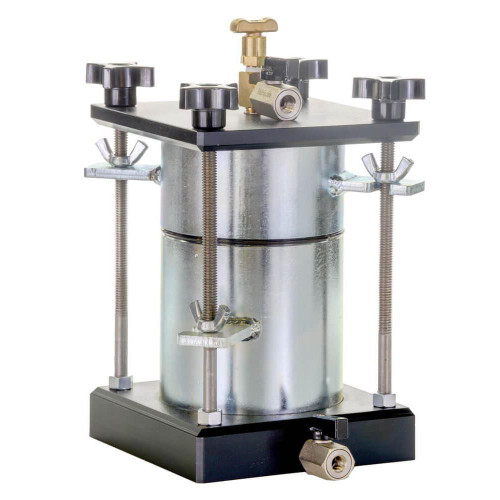

4in Compaction Permeameter

4in and 6in Compaction Permeameters are designed to measure constant or falling-head permeability in compacted or remolded soils. These permeameters are compatible with 4in (102mm) or 6in (152mm) Soil Compaction (Proctor) Mold Sets or Components. Built for durability and long-term use, they feature anodized aluminum upper and lower plates with inlet/outlet connectors and valves for precise water flow control. The upper plate also includes an overflow valve to release air during testing. Each model comes with porous stones, tubing, and an O-Ring. A Single-Tube Manometer, required for soil permeability testing, is sold separately.

Features:

• Durable construction for long-term reliability
• Overflow valve for air removal during testing

Included Items:

• 4in or 6in Compaction Permeameter
• Two porous stones
• Tubing
• O-Ring

Specifications:

• Mold Dimensions: 4 x 4.584in (101.6 x 116.4mm) IDxH
• Product Dimensions: 7.5 x 8 x 10in (191 x 203 x 254mm) WxDxH

Standards Compliance:

ASTM D5856
