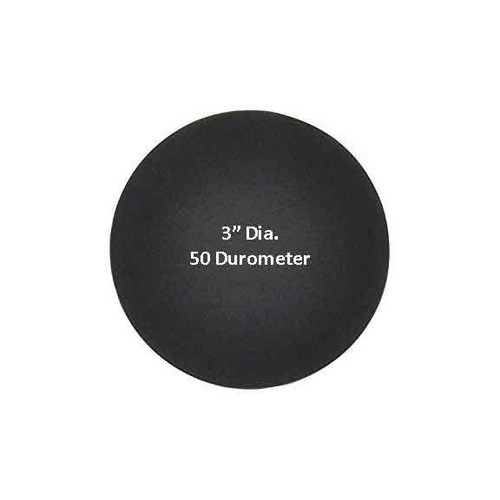

3in Unbonded Capping Neoprene Pad Cap, 50 Durometer

3in Unbonded Capping Neoprene Pad Cap, 50 Durometer

Neoprene Compression Pads for 3in Concrete Cylinders

Neoprene Pads are essential components for testing the compressive strength of 3in (76.2mm) concrete cylinders, ensuring accurate and reliable results. Sold individually, two pads are required per test, and one set is capable of handling up to 100 tests, making them highly durable and cost-effective. To make ordering easier, one box contains 20 pads.

Key Features:

• Available Hardness Options: Choose from 50, 60, or 70 durometers depending on your concrete's design strength.

  • 50 Durometer Pads: Best for concrete strengths between 1,500-6,000 psi (10-40 MPa).
  • 60 Durometer Pads: Ideal for strengths between 2,500-7,000 psi (17-50 MPa).
  • 70 Durometer Pads: Designed for high-strength concrete ranging from 4,000-12,000 psi (28-85 MPa).

• Size and Thickness: The pads are precisely manufactured at 3in (76.2mm) in diameter and 0.5in (12.7mm) thick.

• ASTM and AASHTO Compliance: Meets the strict requirements of ASTM C1231 and AASHTO T22, ensuring reliable and standardized performance.

Functionality:

• Load Uniformity: The pads flow during compression to fill any irregularities or imperfections in the cylinder ends, ensuring even load distribution and reducing the risk of errors.

• Reusable: Each pad can be reused up to 100 times, as specified by ASTM C1231, offering excellent durability and cost savings.

• Compatibility: These pads work in conjunction with the 3in Steel Retainer Set, which is sold separately. The retainer holds the neoprene pad securely in place at each end of the concrete cylinder for accurate testing.

Applications:

Neoprene Compression Pads are widely used in construction, materials testing labs, and civil engineering projects to evaluate the strength and durability of concrete. They are suitable for both low- and high-strength concrete testing scenarios.

Ordering Details:

• Sold individually (two pads required per test).
• Each box contains 20 pads for bulk purchases.
• Available in 50, 60, or 70 durometers to match your specific testing needs.

Maximize your concrete testing accuracy and efficiency with these high-performance Neoprene Pads. Each pad delivers consistent results while meeting industry standards. Pair them with the Steel Retainer Set for optimal performance!
