3in No-Hub Bottom TPO Clad Outlet Roof Drain, Clamp Ring

TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain | Thunderbird Roof Drains

Installation: Flat Roof

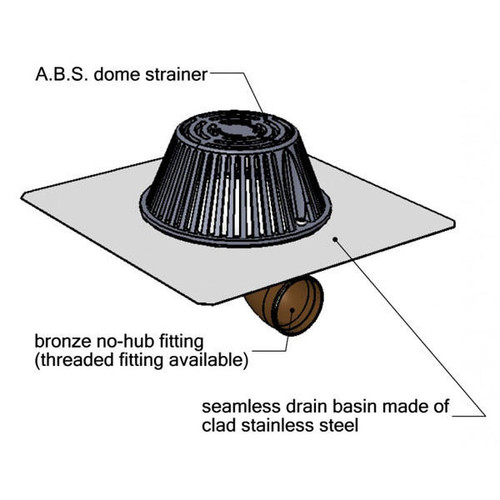

• TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain with seamless flashing and drain basin.
• Heat weld TPO membrane directly to the drain flashing.
• Comes with strong ABS dome strainer, but also available with optional Flat Grate.
• 2" and 3" sizes available.

Details

• Seamless Basin
• TPO or PVC-Clad Stainless Steel Side Outlet Drain
• 2" or 3" bronze fitting
• Heavy duty ABS dome strainer. Also available with optional Flat Grate
• 10" diameter basin
• Heat weld directly to the TPO or PVC-Clad drain flashing
• Manufactured in the USA by Thunderbird Products

Note on Fittings: Two types of fittings are available.
A threaded adapter fitting is used primarily with 2" PVC pipe applications. The threads on the bronze fittings are male and can be attached to a threaded female PVC adapter.
A no hub fitting is the standard fitting used in the industry. With this fitting a rubber coupling is used to connect the drain to the drainage pipe.

Part numbers

• TPO-RDHZ2NH: 2" No-Hub TPO CLAD Side Outlet Roof Drain
• TPO-RDHZ3NH: 3" No-Hub Bottom TPO CLAD Side Outlet Roof Drain w/ Optional Clamping Ring

For PVC part numbers, simply replace TPO with PVC, ex. TPO-RDCB2NH becomes PVC-RDCB2NH. Also, available with optional Flat Grate.

The TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain by Thunderbird Roof Drains is the perfect solution for your flat roof installation needs. This drain features a seamless flashing and drain basin, allowing for a clean and efficient installation process.

With the option to heat weld the TPO membrane directly to the drain flashing, this roof drain offers a secure and watertight connection. The drain also comes with a strong ABS dome strainer, ensuring that debris will not clog the drain. If desired, a flat grate option is also available for purchase.

The TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain is available in 2" and 3" sizes, providing versatility for different applications. The heavy-duty ABS dome strainer ensures durability, while the 10" diameter basin allows for efficient drainage.

Manufactured in the USA by Thunderbird Products, this roof drain is reliable and built to last. It is constructed with top-quality materials to withstand harsh weather conditions and provide long-lasting performance.

Please note that two types of fittings are available for purchase. The threaded adapter fitting is primarily used with 2" PVC pipe applications and can be easily attached to a threaded female PVC adapter. The no hub fitting, on the other hand, is the industry standard and utilizes a rubber coupling to connect the drain to the drainage pipe.

The TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain is available in two variations: TPO-RDHZ2NH for the 2" size and TPO-RDHZ3NH for the 3" size. For customers looking for PVC options, simply replace TPO with PVC in the part number.

Choose the TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain by Thunderbird Roof Drains for a reliable and efficient solution to your flat roof drainage needs.
