3 Phase / Rotation Motor Detector

Advanced 3-Phase / Motor Rotation Detector: Essential for Electrical Professionals

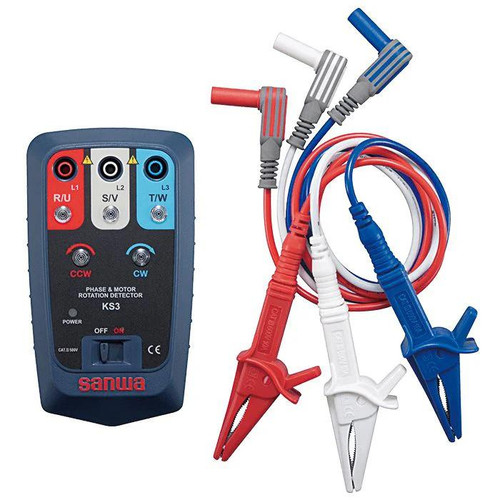

Introducing the KS3, an indispensable tool for electricians, engineers, and technicians working with 3-phase systems and motors. This versatile instrument combines a motor rotation tester and a 3-phase detector into one robust, user-friendly device, ensuring optimal performance and safety in your electrical installations.

Key Capabilities & Benefits:

• Pre-Connection Motor Rotation Direction Testing: A unique and crucial safety feature, the KS3 allows you to determine the correct rotation direction of a 3-phase motor before connecting it to the power supply. Simply rotate the motor shaft manually, and the KS3 provides an immediate, clear indication, preventing potential damage to equipment or unsafe operation due to incorrect wiring.
• Comprehensive 3-Phase Line Analysis: Beyond motor testing, the KS3 accurately checks the phase sequence (identifying positive or negative rotation) and detects open phase conditions in 3-phase lines. This ensures proper system integrity and helps troubleshoot common electrical issues quickly and efficiently.
• Enhanced Safety Standards: Engineered with your safety in mind, the KS3 fully complies with the rigorous IEC61010-1 CAT. III 500 V safety standards, along with IEC61010-031, IEC61326, IEC61557-1, and IEC61557-7. Work with confidence knowing your equipment meets high international safety benchmarks.
• Intuitive & Clear Indication: Bright LED indicators provide instant, unambiguous feedback for motor rotation direction, phase sequence, and open phase conditions, even in dimly lit environments.
• Practical Design for Field Use: The main unit features integrated magnets, allowing you to conveniently attach it to distribution boards, control panels, or other metallic surfaces. This frees your hands for other tasks, enhancing efficiency and safety during measurements.
• Wide Operating Range: Capable of handling 3-phase AC voltages from 75V to 500V (sine wave, continuous) and power frequencies from 40Hz to 400Hz. Motor rotation direction can be determined at speeds as low as 2 Hz (2 rotations/sec.) up to 400Hz.
• Portable & Durable: With a compact size of 128(H)×72(W)×38(D)mm and weighing approximately 210 grams, the KS3 is designed for easy transport and robust performance in demanding industrial and commercial settings. Powered by a standard 6LR61/6LF22 (9V) battery for convenience.

The KS3 Motor Rotation Detector is more than just a tester; it's a critical diagnostic tool that ensures accurate installations, minimizes downtime, and significantly improves safety when working with 3-phase electrical systems. Add this essential instrument to your toolkit today for unparalleled reliability and performance.
