3 Axis EMF (Electro Magnetic Frequencies) Meter

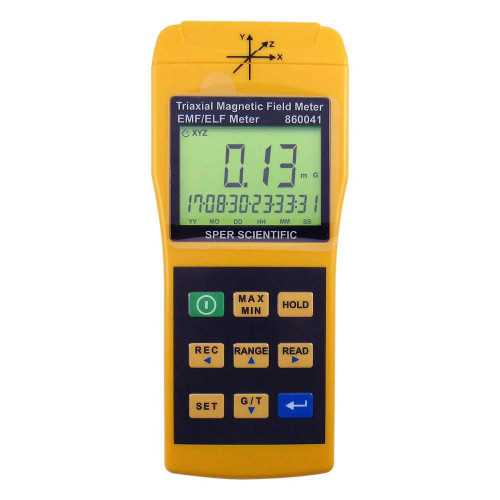

3-Axis EMF (Electromagnetic Frequencies) Meter

The 3-Axis EMF Meter is an advanced tool designed for accurate and efficient measurement of electromagnetic fields (EMF) across various environments. Whether you're analyzing EMF exposure from electrical systems or household appliances, this meter ensures precise results without the need for complex calculations. Its triple-axis functionality automatically determines electromagnetic frequencies from any angle, while also allowing you to view results for the X, Y, and Z axes independently.

Key Features:

• Advanced Triple-Axis Detection: Approach the source at any angle—no need for recalculations as the meter efficiently detects EMF levels.
• Extremely Low Frequency (ELF) Measurement: Monitors EMF from electrical power lines, transmission equipment, appliances, HVAC systems, computers, and other electronic devices.
• Data Logging & Storage: Automatically or manually log readings with time and date stamps. Store up to 500 measurements, which can be reviewed directly on the screen.
• Measurement Scales: Offers milli-Gauss (mG) and micro-Tesla (µT) scales, with manual or auto-ranging options for flexibility.
• Min/Max & Hold Functions: Capture the smallest or largest readings and freeze data for analysis.
• User-Friendly Interface: Large 3-line display provides clear readings, battery status, and over-range alerts.
• Durable Design: Includes tripod screws for hands-free operation, housed in a lightweight, compact design for portability.
• Long Battery Life: Powered by a 9V battery with an impressive 100-hour lifespan.

Specifications:

• Dimensions: 7 ½” x 3 ¼” x 1 ¼" (185 x 85 x 35 mm)
• Weight: 8 oz (230 g)
• Display: 3-row LCD with 4-digit reading
• Frequency Response: 30 to 2000 Hz
• Sampling Rate: 2.5 times per second
• Operating Temperature: 5 to 40°C
• Operating Humidity: Up to 80% RH

Measurement Ranges and Accuracy:

milli-Gauss (mG):

• Range: 20 mG
  • Resolution: 0.01 mG
  • Accuracy: ±(3% + 30 dgt) at 50/60 Hz
• Range: 200 mG
  • Resolution: 0.1 mG
  • Accuracy: ±(2.5% + 30 dgt) at 50/60 Hz
• Range: 2000 mG
  • Resolution: 1 mG
  • Accuracy: ±(5% + 30 dgt) at 30/2000 Hz

micro-Tesla (µT):

• Range: 2 µT
  • Resolution: 0.001 µT
  • Accuracy: ±(3% + 30 dgt) at 50/60 Hz
• Range: 20 µT
  • Resolution: 0.01 µT
  • Accuracy: ±(2.5% + 5 dgt) at 50/60 Hz
• Range: 200 µT
  • Resolution: 0.1 µT
  • Accuracy: ±(5% + 5 dgt) at 30/2000 Hz

Applications:

• Home Safety: Measure EMF from household appliances like microwaves, TVs, and computers.
• Workplace Monitoring: Check for excessive EMF exposure in industrial or office environments.
• Environmental Assessment: Analyze EMF levels near power lines, substations, or transmission towers.
• Scientific Research: Ideal for studies involving electromagnetic field analysis or health impact assessments.

Health and Safety Note:

While the connection between EMF exposure and health risks, such as cancer, remains inconclusive, it is recommended to practice "prudent avoidance." Reducing prolonged exposure to high EMF levels may be beneficial for long-term health.

Included with the Meter:

• Soft carrying case for easy transport
• Instruction manual for quick setup and operation
• 9V battery (lasts approximately 100 hours)

Whether you're a professional conducting environmental assessments or a homeowner concerned about EMF exposure, the 3-Axis EMF Meter simplifies complex measurements and provides reliable results.
