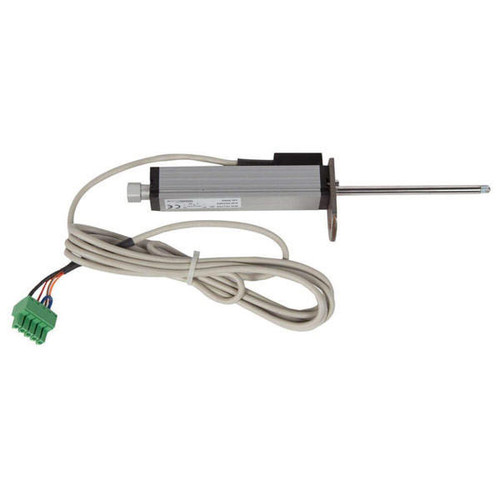

2in Linear Variable Displacement Transducer
Linear Variable Displacement Transducers (LVDTs) are designed for precise measurement of soil deformation or movement during tests like shear, consolidation, and triaxial. These devices provide a digital output corresponding to the displacement of a reference surface. Built with durability and accuracy in mind, they feature anodized aluminum housing, a stainless steel actuating shaft with an anti-rotation device, and a double bearing system on both the shaft and spring to minimize side load errors. With a repeatability of 0.002mm, each transducer includes two fixing clamps, screws, and a hardened ballpoint gauging head.
Specifications:
- Displacement Range: 0–2in (0–51mm)
- Repeatability: 0.002mm
- Product Dimensions: 0.75 x 1.75 x 7.75in (19 x 44.5 x 197mm)
Key Features:
- Ideal for digital displacement measurement in soil testing applications
- Highly accurate with 0.002mm repeatability
- Double bearing system reduces side load errors for reliable performance
