2.5in Diameter Bronze Porous Stone, 0.25in Thick

2.5in Diameter Bronze Porous Stone, 0.25in Thick

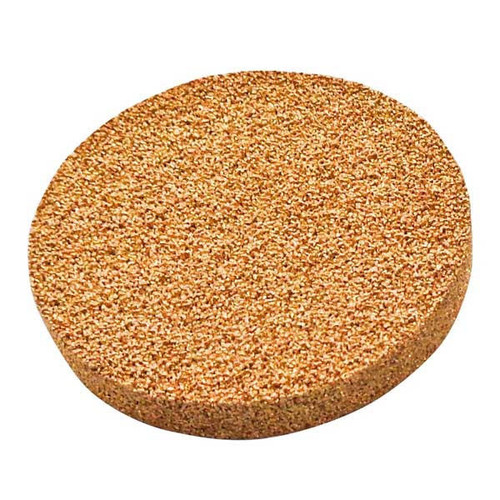

The Bronze Porous Stone measures 2.5in (63.5mm) in diameter, 0.25in (6.4mm) in thickness, and is made from durable sintered bronze. This rigid disc is designed to support cylindrical soil samples on both ends while enabling two-way fluid flow.

We provide a full range of Porous Stones for various geotechnical laboratory applications, including triaxial shear, permeability, direct shear, consolidation, and more.

Porous Stones facilitate fluid flow and measurement during testing while preventing fine particles from entering the system. These high-quality stones feature a permeability range of 15-18ft³ (424-510L) of air per square foot and an average pore size of 179μm. All Porous Stones are in stock and ready to ship.

Available Options:

• Aluminum Oxide Round Porous Stones: The most popular choice, available in a wide range of diameters with thicknesses of 0.25in (6.3mm) or 0.5in (12.5mm).
• Sintered Bronze Round Porous Stones: Offered in various popular sizes with thicknesses of 0.125in (3.2mm) or 0.25in (6.3mm).
• Aluminum Oxide Square Porous Stones: Machined from aluminum oxide, these are 0.25in thick and come in sizes ranging from 1.953 x 1.953in (50 x 50mm) to 3.985 x 3.985in (101 x 101mm).

Specifications:

• Shape: Round
• Size: 2.5in (63.5mm)
• Thickness: 0.25in (6.35mm)
• Material: Bronze
• Meets Test Method: ASTM D2435
