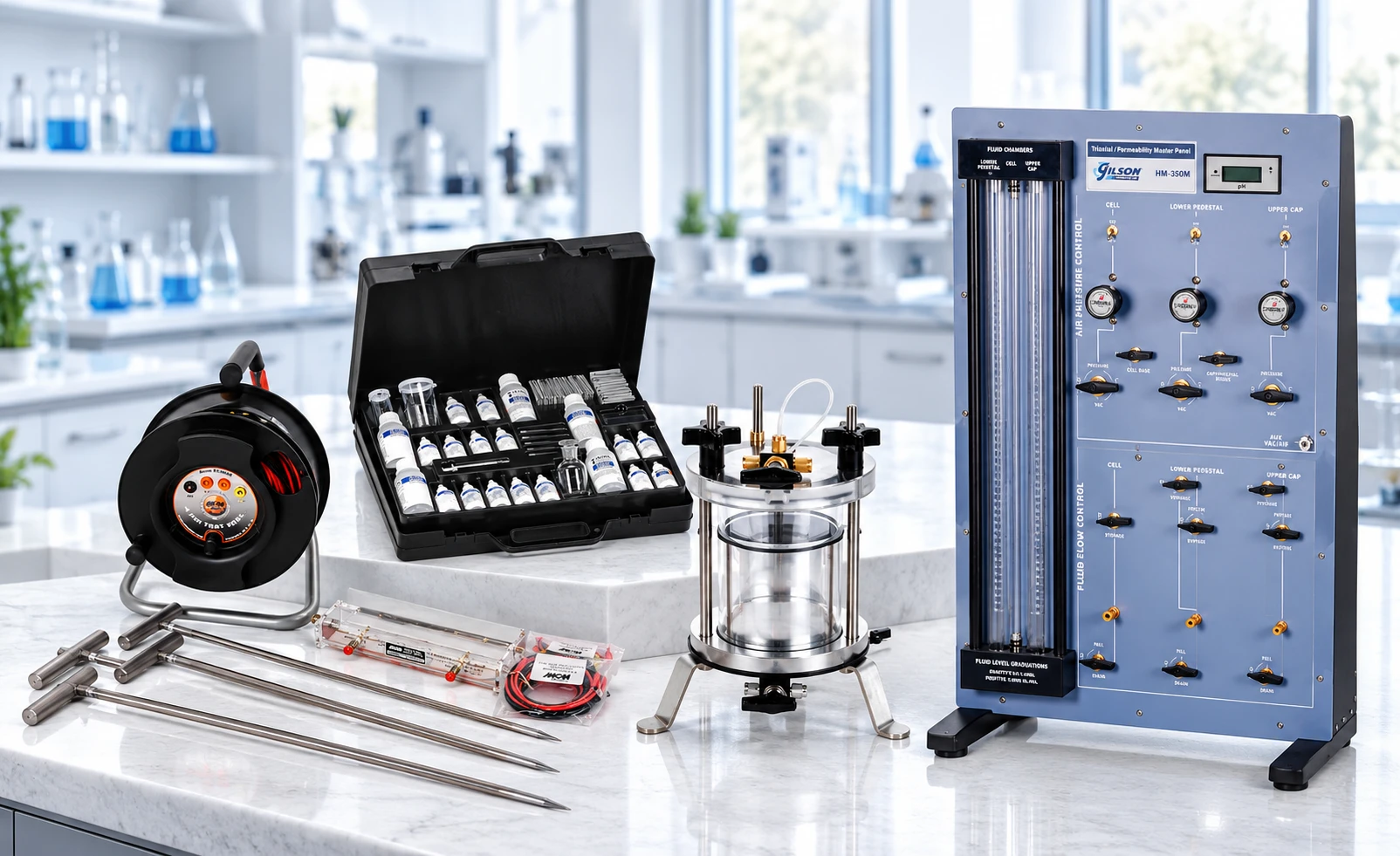

Constant Head Permeameter Cell: Soil Permeameters
Certified Material Testing Products has soil permeameters to measure the rate of water movement through soil. These permeameters have anodized aluminum components to make them functional and durable during soil permeabilitytesting. The permeameters have anodized aluminum clamping rings and end caps to keep the sample intact and prevent soil density changes during testing.
One of the permeameter options is the ASTM/AASHTO Granular Soil Permeameter. This one uses the constant head method to measure permeability in granularsoil samples. This method is used to measure the hydraulic conductivity of granular soil samples, providing reliable and fast results. It’s a reliable and fast way to determine the rate of water flow through these types of soils.
Another option is the Combination Permeameter which is versatile and cost effective. With this permeameter you can test granular samples using the constant head or falling head method. This flexibility allows you to choose the testing method that suits your needs making it a very adaptable soil testing tool.
For those who need to test undisturbed soil samples the Shelby Tube Permeameter is the way to go. This permeameter allows you to test soil samples without disturbing them. This is important when testing soils that are sensitive to disturbance as it ensures accurate results.
Certified Material Testing Products also has a range of accessories and additional equipment to go with their soil permeameter. These include filter paper, compaction permeameters of various sizes, constant head tanks and triaxial/permeability master panels among others. These accessories will help you to enhance your testing capability and improve your measurements.
Choosing the right soil permeameter is important to determine the permeability of different soil types. Certified Material Testing Products understands this need and has a range of permeameter options to cater to the various needs of soil testing professionals. Whether you’re testing granular soil samples or undisturbed soil, their permeameters will give you reliable and fast results. Add these permeameters to their range of accessories and you have everything you need for soil testing.
See all Deck Drains, Drainage Systems, Drainage Systems, Shower Drains, Drain Grates.
Soil Permeability and Soil Density Changes
Soil permeability is a key parameter in geotechnical engineering as it affects the behavior of water in soil and its impact on various engineering applications. Permeability is defined as the ability of soil to allow water to flow through it and is measured in terms of the coefficient of permeability (k). The coefficient of permeability is a measure of how easy water can flow through a soil and is influenced by soil texture, density and structure.
Soil permeability is used in various engineering applications:
-
Design of drainage systems and water supply systems
-
Analysis of soil stability and settlement
-
Evaluation of soil contamination and remediation
-
Design of foundations and pavements
There are two ways to measure soil permeability: constant head and falling head. Constant head involves maintaining a constant head of water above the soil sample while falling head involves allowing the water level to fall as it flows through the soil. Both can be used to determine the coefficient of permeability but constant head is more accurate. The hydraulic gradient, which is the difference in water pressure across the soil sample, plays a crucial role in determining the flow rate.
Principles and Applications
The Constant Falling Head Permeameter is designed to determine the coefficient of permeability of granular soils using either the constant head method or the falling head method, both of which facilitate laminar flow of water through the soil sample. The constant head method is particularly useful for measuring the saturated hydraulic conductivity of granular soils. This dual-method capability makes it an invaluable tool in soil testing, allowing researchers and engineers to evaluate the hydraulic conductivity of soils under different conditions. Understanding soil permeability is crucial for various engineering applications, including the design of drainage systems, foundations, and earth dams.
In the constant head method, a steady water level is maintained above the soil sample, providing continuous flow and enabling precise measurement of high-permeability soils. Conversely, the falling head method involves allowing the water level to decrease over time, which is particularly useful for testing soils with lower permeability. Both methods yield critical insights into the soil’s behavior under varying hydraulic conditions, aiding in the accurate assessment of its permeability.
The permeameter’s design ensures that soil density changes are minimized during testing, which is essential for obtaining reliable results. By preventing soil density changes, the permeameter provides a more accurate representation of the soil’s natural state, leading to better-informed engineering decisions.
Types and Applications of Permeameters: Falling Head Method
Permeameters are laboratory equipment used to measure soil permeability. There are several types of permeameters:
-
Constant head permeameters: These use the constant head method to measure permeability. For high permeability soils.
-
Falling head permeameters: These use the falling head method to measure permeability. For low permeability soils.
-
Permeability cells: These are specialized permeameters for specific applications like granular soils.
Permeameters are used in:
-
Geotechnical engineering: Permeameters are used to design drainage systems, analyze soil stability and evaluate soil contamination.
-
Environmental engineering: Permeameters are used to evaluate soil remediation and design water supply systems.
-
Civil engineering: Permeameters are used to design foundations and pavements.
The permeameter measures the saturated hydraulic conductivity of soil samples, for accurate and reliable results.
Features
The Constant Falling Head Permeameter has a one-piece acrylic chamber for clear viewing of the soil sample during testing. The chamber has valves, porous stones or perforated screens depending on the sample diameter and manometer tubes for water level measurement. The top cap spring applies 5-10 lb (2.3-4.5 kg) of pressure on the top stone or screen to prevent soil density changes during the test.
Available in 5 sizes, this permeameter can accommodate a wide range of soil samples. The adjustable constant head reservoir can be mounted to the upright scale and removed easily for convenience. A standout feature is the removable constant head reservoir.
The permeameter has anodized aluminum end caps and clamping ring for secure and durable connection between the chamber and valves. The manometer ports are grooved and screened inside to prevent soil density changes, for accurate results.
Easy to operate, you can change sample lengths for constant or falling head tests by attaching a spacer to the top cap spring. Compact and portable, it can be used in laboratory and field settings, for flexibility.
Follow these guidelines to use the Constant Falling Head Permeameter to measure soil permeability accurately.
Using Permeameters in Practice with Adjustable Constant Head Reservoir
Using a permeameter in practice:
-
Sample preparation: Compaction of the soil sample in a cylindrical mold.
-
Permeameter setup: Follow the manufacturer’s instructions to set up the permeameter, including attaching manometer tubes and adjusting the constant head reservoir.
-
Testing: Measure the permeability of the soil sample. This can be done by maintaining a constant head of water above the sample or allowing the water level to fall as it flows through the sample.
-
Data analysis: Analyze the data to get the coefficient of permeability.
Some things to consider when using a permeameter:
-
Prevent soil density changes: Use the top cap spring to apply a constant force against the top stone or screen to prevent soil density changes during the test.
-
Use the right manometer: A manometer is required to measure the head of water above the sample. Make sure it’s calibrated and accurate.
-
Laminar flow: The permeameter should have laminar flow of water through the sample. This can be achieved by using a porous stone or perforated screen.
-
Adjustable constant head reservoir: An adjustable constant head reservoir allows for precise control of the head of water above the sample.
By following these you can use permeameters to measure soil permeability accurately and get valuable data for various engineering applications. Darcy’s law is often used to calculate the flow rate of water through the soil sample, for theoretical basis of the measurements.
