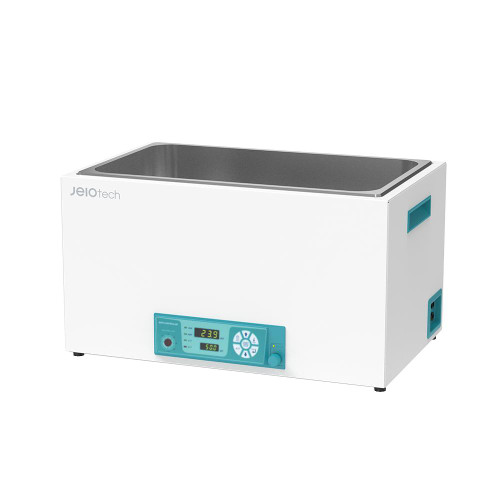

Lab Companion BW-20H 24.5L Heating Bath, 230V
The Lab Companion BW-20H is a high-performance 24.5L heating bath designed for precision and safety in a laboratory setting. Operating on a 230V power supply, this unit provides exceptional temperature control for a wide range of scientific applications.
Performance and Control
This heating bath delivers a stable temperature environment with a range from ambient +5℃ up to 100℃. At its core is an advanced microprocessor PID controller, which facilitates automatic tuning and calibration to ensure temperature accuracy. This guarantees that your experiments are conducted under consistent and reproducible thermal conditions. The system also features a powerful circulation pump, using a patented agitator to maintain excellent temperature uniformity throughout the 24.5-liter bath, eliminating hot spots and ensuring all samples are treated equally.
Advanced Safety Features
Safety is paramount in the BW-20H's design. It is equipped with a comprehensive safety protection system that includes audible and visual alarms for over-temperature and over-current events, immediately alerting users to any operational issues. For enhanced user safety, the heater and sensor are isolated by a baffle plate, preventing direct contact with samples or users. The keypad lock function is another crucial feature, preventing accidental adjustments to temperature settings during critical operations.
User-Centric Design and Convenience
The BW-20H is designed for ease of use and accessibility. Its low-profile body and sloped control panel allow for comfortable operation and clear visibility of the digital LED display, which shows temperatures with a 0.1℃ resolution. Adjustments are made effortlessly with a quick-adjustable dial knob.
Specifications:
- Model: BW-20H
- Capacity: 24.5 Liters (0.7 cu ft)
- Temperature Range: Ambient +5°C to 100°C
- Dimensions (W x D x H):
- Bath Opening: 300 x 240 mm (11.8 x 9.5 in)
- Bath Depth: 200 mm (7.9 in)
- Overall: 564 x 372 x 318 mm (22.2 x 14.6 x 12.5 in)
- Electrical Requirements: 230V, 50Hz, 8.7A
- Weight: 15.5 kg (34.2 lbs)
- Catalog No: AAH45135K
