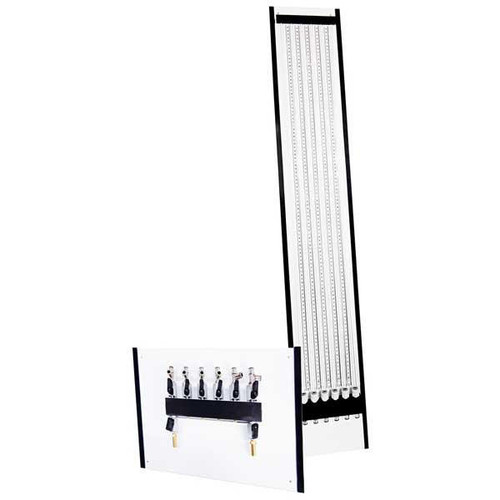

The Six Manometer Panel is a required component of the Soil / Geotextile Permeameter system to monitor fluid pressures during gradient ratio testing. Six 100cm (39.37in) manometer tubes are mounted on a white thermoplastic panel against scales with 1cm divisions. Each manometer has a capacity of 8cc. Six flow control valves are mounted to a separate control panel that can be positioned nearby on a benchtop. Quality ball valves control flow in and out of the manometers with no need to disconnect from the permeameter. Simple push-fit fixtures quickly connect tubing to manometer and permeameter ports. Vinyl tubing and mounting hardware is included.
Features:
- Six 100cm Manometer Tubes with 1cm divisions and 8cc capacity
- Six flow control valves on separate panel
Included Items:
- Six Manometer Panel
- Control Panel with six flow control valves
- 10ft 1/2in ID Vinyl Tubing
- 30ft 1/4in ID Vinyl Tubing
- Mounting hardware
Meets Test Method:
ASTM D 5101
